- Powerful Tool --- Has the design for 4 pole 12 slot high torque motor, able to provide high power, strong for heavy duty work and preventing deformation.
- Well Made --- Equipped with CNC machining 6061 aluminum motor frame for a good heat dissipation effect, providing a satisfying using experience.
- Suitable Model --- Ideal replacement for the original old or damaged part, suitable for most 1/8 and 1/10 2S‑4S RC vehicle for better performance.
- Wide Application --- Has the feature for waterproof, so that the replacement kit is suitable for all conditions of games with a wide application range.
- Easy to Use --- Manufactured with accurate shape and size, has a close fitting, simple for installation and removal, will not take much effort or time.
How to Use:
1. Connect the BEC cable to the receiver.
2. Connect the motor wire with the ESC.
3. Turn on the transmitter.
4. Connect the battery group to the ESC, and then turn on the ESC.
5. When the motor is connected to the battery, the motor will have "beep" sound.
6. When the throttle lever is in neutral position, the motor will have "beep" sound again.
7. ESC is available.
Specification:
Item Type: RC Brushless Motor ESC Combo
Material: Aluminum Alloy Plastic Electronic Components
Application: for 1/8, 1/10 RC Vehicle
Gross Weight: Approx.350g/12.3oz
RC Motor:
Color: Red
Product Size: Approx.36x50mm/1.4x2.0in (Excluding Cables And Shafts)
Maximum RPM: 60000 Maximum
KV (RPM/Volt): 4300kv
Voltage: <8.4 V
Maximum Current: 100A
Rotor Pole: 4 Poles
Watt: 850W
Axial Length: 15mm/0.6in
Axial Diameter: 3mm/0.1in
Connector: 4mm Golden Banana Head
ESC:
Continuous Current: 60A
Burst Current: 320A
Battery: 2-4cells Lipo
BEC Output: 6V/5A
Servo
Size: 40x20x40.5mm/1.57x0.8x1.59in
Operating Voltage: 4.8~7.4 Volts
Drawing Dead: 3mus
Motor Type: DC Motor
Gear Type: Copper And Aluminum
Operating Frequency: 50-333Hz
Working Stroke: 180 Degrees (PWM 500-2500MUS), Or 270 Degree (PWM 500-2500MUS)

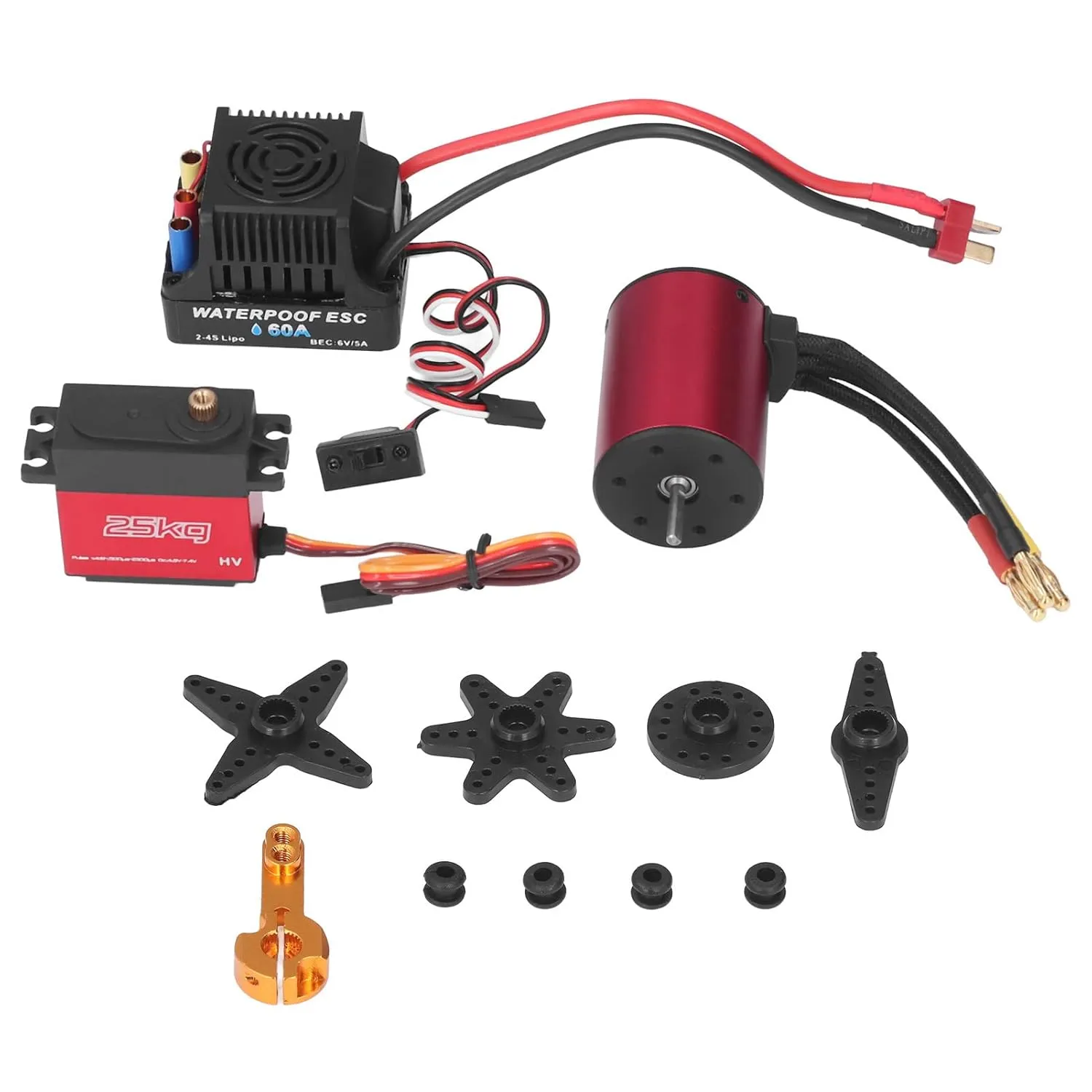

Package List:
1 x Motor
1 x ESC
1 x Servo
4 x Plastic Steering Arm
1 x Metal Steering Arm
1 Pack x Screws
4 x Damping Rubber
4 x Screw Barrel
1 x Manual
- Package Dimensions : 6.42 x 5.24 x 1.93 inches; 12.35 ounces
- Manufacturer recommended age : 6 - 6 months
- Date First Available : February 22, 2022
- Manufacturer : SUNGOOYUE
- Country of Origin : China
